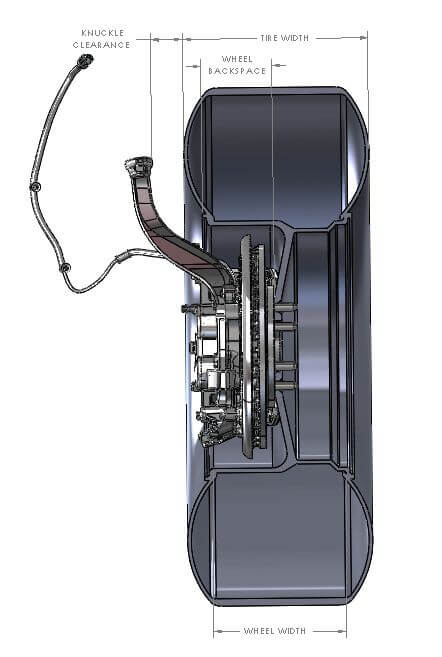

Backspace, Bigger Tires, and Clearances:
We get a lot of questions about wheel choices. This should hopefully clear up some of the confusion people have, especially when dealing with IFS lifts. The backspace and rim width are the two critical items when selecting a wheel to go with an aftermarket lift. The backspacing will determine the clearance to the steering knuckle. This is very important, because too much backspacing will put the rim in contact with suspension components, and will vary by the rim size
Often times the factory rim will go back on after a kit is installed, but only with a stock tire. You can see how much a tire overhangs the rim (tire bulge), this gets a lot worse when you go up to a 35 x 12.50 tire. The factory width tire on most of trucks is 275mm, which translates to 10.8 inches wide. Adding a 12.50 tire would decrease the clearance by almost 1 inch, and this is enough to make that combination not work. This is why we specify a certain width wheel (to eliminate some of the tire bulge) and a certain backspacing (to guarantee clearance to steering components).
Too little backspacing will put the wheel outside of the wheel well really far. This is great for suspension component clearance, but really bad for fender clearances. When the tire sticks out it is likely to rub on the bumper and backside of the front fender while the wheel is turned. Sometimes some creative trimming will fix this problem, but most people do not like to trim excessively on brand new trucks. The other problem with a wheel that sticks out really far is it increases tire scrub. This can cause issues with traction control systems as well as increase the wear on factory components.
If you are in love with a certain wheel, contact us with the specifications, check with us before you order them. We can let you know if you will have possible interference issues. Don’t be too upset when we say that you should think about a different rim. We have test fit lots of different rims and our listings represent the best specifications for getting the biggest tire on your truck.
i have 2 inches of body lift already on my 2001 F150 and i was told i could fit 38’s after installing this kit, is this true if not what is the largest tire i can fit, the widest, and what wheel size is recommended?
@Justin H
Which kit are you asking about, combining our 6” suspension lift with a 2” body? The max size is really dependent on the wheels and tires you select, the width and the wheel backspacing. Some 38’s measure out to be 36.5” actual height, so a flat answer to will 38’s fit gets a little tricky… A wider tire or smaller backspacing (stuck out farther) will be more likely to rub when turning. If you plan to run the stock fenders and stock bumpers I’d say a 37×13.50 is probably a safer bet to run with your setup. We haven’t tested combining the suspension/body lifts with that tire so we can’t guarantee their won’t be some trimming necessary, but I’d look for a 9-10” wide rim with 4.5-4.75” backspacing. Wheel diameter is up to you, the larger you go the more expensive the wheels/tires get.
I have a 2013 Silverado Z71. I’m wanting the 4.5″ lift. If I decide to run 35×11.50×20, what would be the best backspacing to have the least amount of rub? Same question for 35×12.50×20?
Hey Aaron, ultimately a 35″ tall tire is outside of our recommended specs with the 4.5″ lift. While it has been done, some trimming will likely be needed to clear in all on-road/offroad driving situations. That said optimal wheel specs on either of those tires would be a 20×9 w/ 5.75″ backspacing.
I am thinking about installing either your 4″ or 6″ suspension lift on my 2004 F150 4×4. I am currently running stock wheels (17″) with 285/70/17 Nitto Terra Grapplers. Would I run into any issues by staying with my current wheel/tire setup? Or would I need to buy an aftermarket wheel with different backspacing?
Hey Nick, the stock 17s will not fit back on the truck after installing the lift do to clearance issues of the tie rod mounted to the new steering knuckles. We have more information on our website about recommended wheel/tire specs and feel free to call our tech support line for further clarification (888) 998-9663
Hey there,
I am considering your 6″ Suspension lift for my 2011 F-150 4×4. It has the 20″ wheel option, which I believe is 20 x 9.5″.
Would I be able to continue to run the stock wheel and tire combination on this truck, and if so, what size wheel is ideal in either 18 x 9″ or 20 x 9.5″
(offset / backspacing).
I like the appearance of the wide lipped wheels but I realize these have huge backspace and thus, are generally not suitable in my application.
I’m content with something like the PRO-Comp Diesel, but don’t know if any of their stock sizes are suitable for this kit.
Thanks
Hey BeeRad,
tech support is better suited to discuss these questions, please contact them at [email protected] or (888) 998-9663.
I want to put 33×12.5 on 17” rims on my 2006 Tacoma with a 6” zone lift. Is that possible?
Hi Jeremy,
Our official specification is for 18″+ wheels due to a potential clearance issue with 17″ wheels and the steering. That said we have had some customers successfully install aftermarket 17s, however it’s dependent on the contour of the particular wheel as to if it will clear. If attempting to fit 17s I’d recommend dry fitment once the lift is installed to ensure they clear before mounting up the tires.
I have a 2014 dodge ram 1500 4wd crew cab gas, and I ordered the 6 inch zone suspension lift and I am running 295/70/17 tires but I can’t make up my mind on rims I am looking at the 17x9x 5/5.5 -12mm offset or -24mm offset I also have 2 inch wheel spacers already installed. Which offset should I go with?
Hey Mark,
Our recommendations are just that, recommendations based on optimal tire clearance and what we’ve tested in house. Other sizes can be used, but its important to understand additional modification (ie trimming) may be needed to ensure tire clearance and not all tires are measured as the true tire size. For a ’14 RAM 1500 with the Zone 6″ lift kit we recommend up to 37×12.50 tires on 9″ wide wheels with 4.5-5″ backspacing for optimal clearance to the fenders as well as the suspension components. A 295/70r17 measures out to roughly a 33.5″ x 11.50″ tire which is will leave some space in the wheel well. A 9″ wide wheel with -12mm offset measures out to 4.5″ backspacing, whereas a 9″ wide wheel with -24mm offset measures out to about 4″ backspacing. If you factor in the 2″ wheel spacers you have installed that’ll measure out to essentially 2.5″ or 2″ backspacing for a wide stance, and technically outside of the wheel/tire combos we’d typically recommend using or have tested at this point.
Another option to consider, ditching the wheel spacers and going with a choosing a wheel to achieve the width + backspacing you are after. If your goal is to have a wide stance, a 12-14″ wide wheel may be a better fit, although options are limited in 17″ diameter ideally you’d run a wider tire if installing wider wheels.
I have a 98 f150 got the zone 6″ lift and also a leveling kit for the front. I want to do 20×12 -44 offset wheel is that possible? What size tires will I be able to fit nicely? Any ideas..
Being that it’s outside our recommended wheel/tire specs, we can’t guarantee fitment without some modifications being needed. You’ll likely want to stick to a 33-35” tall tire on there to allow fitment when turning lock-to-lock. An aftermarket front bumper or front bumper trimming will open up extra clearance as well.
My current tired are 38 13.50 18 toyos and I am thinking of going down to 35 but the width of the tires I like are 12.50 will that still fit on the rims?
That would depend on the width of the wheels you are currently running. Most tire companies have a recommended wheel width listing on their sites, depending on the tires its likely around an 8.5-11” wide wheel
Hi, I have a 2008 silverado and am planning on doing the 4.5″ lift with 20×9 Fuel Vapor wheels with +1 offset. Ill be running 33×12.5 R20s on it. I was curious as to whether I would have any issue or if I should be ok. The offroad shop said it should all work fine.
Hey Austin,
That setup work work great and is right within our recommended specs. The 20×9 (+1 offset) measure out to roughly 5″ backspacing.
I have a 2014 Silverado 1500 planning on doing a 6.5 zone lift with cali off road twisted rims 0 offset 35×12.50×20. Do I need any back spacing?
Hey Scott, we spec our 6.5″ lift kit to fit 35×12.50×20 tires on 20×9 wheels with 5-5.75″ backspacing. Based on your message you seem to be a little confused on what backspacing is. Backspacing and offset are 2 ways to measure the wheel spec. Backspacing is a measurement from the wheel mounting surface to the backside of the wheel, measured in inches. Offset is the measurement of how far the wheel mounting surface is “offset” from the center of the wheel, measured in millimeter and relative to the width of the wheel. Without knowing how wide your 20″ Cali Offroad wheels are its difficult to say how 0 offset is.
I have a 2009 Silverado Z71 Extended Cab. I’m going to order the 6.5″ lift. I want to stick with my factory 18″ wheels. I’m pretty sure they have back spacing of 5.7″ +31 offset. I currently have 285/65R18 Trail Grapplers but I’m worried they will look tiny after lift. I’m not wanting much outside fenders . Would like flush or less than a inch outside but would like a tire as tall as I can get. What size would you recommend and would the 285/65 look retarded if I kept them for time being. Also will I need spacers in the rear to even track width….? Tire sizes I was thing was 285/75 , 295/70 , 305/70 or if it would work a 315/70R18. If I need to trim a little plastic im good with that…I’m also not worried if I have a little rub on full lock turning. This is my weekend truck as I have a company truck as my daily driver. Thanks
Hey Chris,
your 285/65r18 tires measure out to 32.5×11.50 when they were new. You’ll still have a fair amount of clearance in the fender opening running our 6.5″ lift. We recommend the 6.5″ kit to be used with aftermarket 18×9 wheels (w/ 5″ BSing) to increase the clearance between the steering knuckle and sidewall of the tire. If you want to run the stock wheels I’d recommend contacting our tech support department for their recommendations for tire size/clearance at (888) 998-9663 or [email protected]
I have a 2500hd duramax, Im looking to do the 5in lift but want to keep my stock 18 inch wheels. Will I be able to if i put spacers and do a little trimming?
Hey Ken, while aftermarket 18s are recommended, the stock 18″ wheels can be used in combination with wheel spacers to achieve our recommended 4.5-5″ wheel backspacing. For more on the topic contact Zone sales/tech support at (888) 998-9663 or [email protected]
I have a 2011 ford f150 4×4 with a 2.5 leveling kit. The wheels I want are 20×10 with -19 offset and 4.75 backspacing. Could I fit a 35×13.50r20 on my truck.
That wheel/tire combo will require some fender trimming to fit with just 2.5″ of lift. Ideally you would have 6″ of lift to fit that tire/wheel combo on the ’09-14 Ford F150 trucks.
I have the zone 8 inch lift from stage three motor sports. I’m wanting to put a 20×12 wheel. And a 37 x 13.5 nitto mud. Will that work? My truck is a 2012 f 150.
Hey Jimmy, that setup is outside of our recommend specs for the F150 being that our kit is designed as a 6″ IFS lift system so we can’t guarantee fitment without any trimming being needed.37×13.50 tires on 20×12 wheels should fit comfortably on there with 8″ of lift for daily driving, however some trimming may be needed especially if used offroad.
I got your uca 3″ adventure series lift for a 07 gmc sierra 2500hd classic id like to put the 20×10 fuel vapor wheel with -18 offset with a 4.75 backspacing with 33×12.50r20 or 35s (if possible) would that work? If not would wheel spacers help?
Hey Josh,
Our recommended specs for that 3″ UCA lift kit are to fit 33×12.50 tires on 9″ wide wheels with 5″ backspacing. That said a 20×10 wheel with 4.75″ BSing can be installed, however are more likely to require some trimming to clear at full turn, especially in offroad situations where the suspension may be flexed. Wheel spacers wouldn’t help with clearance, they would actually make it tire clearance worse when the wheels are turned.
I have a 2014 Ram 1500 with stock 20” wheels. My plan is to install a MaxTrack 4.5 inch lift, (4.5 inch front, 1.5 inch rear) then go with 35x 12.5 20s (BFG All Terrain KO2) and stay with the STOCK wheels. If I use 1.5 inch wheel spacers, will this combination work without any trimming or rubbing? Thanks in advance
Hey Heath, being a suspension manufacturer ourselves its difficult to offer recommendations on another company’s kit without knowing their kit specifics, track width changes and wheel/tire recommendations. The Zone Offroad 4″ kit doesn’t increase track width and allows fitment of 35×12.50 tires when used with 20×9 wheels using a 4.5-5″ backspacing. Most of the factory 20″ RAM wheels are 20×8 w/ 5.25-5.5″ BSing so you’ll want to use around 1-1.5″ wheel spacer.
Hi peops, Im lookin to get your 5.5 lift kit for my 15 GMC Canyone SLE All Terrain 4×4, your recommended max tire size is 295/70 r17, my wheel is Moto metal 984 17×9, -12 offset, 4.53 bs, your listed wheel is 17×8 with 4.5 bs. Will my wider wheel be cool here, if I have to trim a little plastic inside the wheel well, my installer is cool with minimal trimming. MANY THANX…
Hey Paul, your 17×9 Moto Metal wheels will work fine with the 5.5″ lift kit, however may require minor trimming for clearance in all on-road/off-road driving situations. For more on the it head to http://zoneoffroad.com/zone-offroad-products-5-6in-suspension-lift-kit-chevy-colorado-canyon/c39
I forgot to mention, if that set up doesnt work, would it help to drop down to a 295/65/17 or285/65/17 which is my linit, I’m even open to a 285/65/18×9 Raceline wheel, let me know my options . I aprecise your expertise, I just wanna get this right the first time…Later ,THX…
I have a 2014 GMC Sierra 1500 with 18inch factory wheels. I want to get the 4.5inch lift but want to keep the factory wheels. Online it says cannot reuse 17 or 18″ wheels. Is that true and if so can I reuse with a spacer on front wheels and if so what size spacer
Hey Charles, thanks for reaching out and for your interest in Zone Offroad. To answer your question the stock 17-17″ wheels can’t be reinstalled with our 4.5″ kit due to the large backspacing causing clearance issues with the new suspension components. If wheel spacers were installed to achieve our recommended backspacing measurements then you would be fine to reinstall the factory wheels. The size of spacer would depend on your particular wheel, but likely around a 1″ spacer for the front.
Can I run 33×12.50 tires with 18×9 + 18 offset wheels back spacing is 5.708″ with your 4″ suspension lift on a 2011 silverado z71 4wd?
Hey Matt,
We spec our 4.5″ IFS Lift Kits for your 2011 Chevy Silverado 1500 to allow fitment of 33×12.50 tires on 18×9 wheels with 5″ BS. 18×9 wheels with 5.7″ BS will have a clearance issue between the wheel and steering tie rod end. For more on the topic contact us at (888) 998-9663 or ([email protected])
I have an 04 Silverado 1500. I’m looking to buy the 6″ suspension lift and 3″ body lift. Im wanting to know if 315/75/16 tires with tread width 9 3/4″ and tires 16×10 with 4.5 backspace will fit if trimming isn’t an issue.
Hey Katy,
You shouldn’t have any issue fitting that tire/wheel combo on there with that amount of lift. We spec our 6″ lifts to fit 35×12.50s (equiv to 315/75r16) on 16×8 wheels with 4.5″ BS, the extra width of the 16×10 will require some trimming for clearance in all driving situations on road and off, but if you’re adding the body lift you will have the clearance. What I’d suggest is install the suspension lift, wheels and tires first to check clearance and get a better idea how much trimming would be involved. You may decide to trim rather than add the body lift.
For more on the 6″ IFS lift kit head to http://zoneoffroad.com/zone-offroad-products-5-6in-suspension-lift-kit-chevy-gmc-pickup/c3
Thanks Carter!
I have a 2017 Sierra 1500 and can’t decide between the 4.5” Lift and the 6.5” Lift. I want to fit 35×12.50×20 Toyo M/t’s. I’m lookin at the fuel Assualt rims either the 20×10 with a -18mm offset or the 20×9 with a +1mm offset. Which would be the best rout to go for the best ride. I also deliver in this truck and was looking to keep it as low as possible but will be willing to go to the 6” Lift. Just weighing my options.
Hey Tyler,
Thanks for reaching out and your interest in Zone Offroad. On your ’17 GMC 1500 you can fit a 35×12.50 tire with as little as our 4.5″ of lift, however you will need to stick to the recommended wheel specs listed on our website, 20×9 wheels with 5.75″ backspacing and even then some trimming will likely be required. Our 6.5″ lift kit is better suited to fitting that wheel/tire combo, but even then a 35×12.50 tire on a 20×10 wheel with 4.75″ backspacing may require some trimming to clear in all driving situations on and off-road. For more info on our available lift kits, wheel/tire recommendations, truck photos and more head to http://zoneoffroad.com/display?ma=12&yr=2017&mo=273&ca=78
So I am looking into either getting your 4.5” or 6.5” suspension radius arm lift kit for my 2014 ram 2500 (Diesel) but I had a couple questions. I noticed that the 6.5” comes with a progressive coil for the rear as well as a new coil for the front, while the 4.5” kit just comes with spacers in the rear, my question is which is better for ride quality if these effect it at all? Does the coil spring in the rear make the truck ride nicer than putting a spacer in with stock spring? Also I see that you guys are saying in the descriptions that with the 4.5” lift I could clear 37×12.50 tires with a 17×9 wheel with a negative 5.625 offset. And with the 6.5” lift I could clear 37×13.50 tires with a 17×9 wheel with a negative 5.625 offset. My question about this is that I have an 18” stock wheel on right now and I can’t go down to a 17” do to clearance around the brakes so will this change anything being that I have to use at least an 18” wheel? Also will that backspacing that your calling out for make my tire stick way outside the fenders? I would like to use the 4.5” kit but was just wondering about those few things. The only reason I’m thinking 4.5 over the 6.5 is simply because I like the looks of the trucks that don’t have a bunch of fender space and I want to run 37’s no bigger. I like when the tire is closer to the fender but without rubbing on anything and without having to trim anything obviously and I like the tire to stick out of the fender a little bit but not like half of the tire sticking out. so I was just wondering if the 4.5 would work for what I’m looking to do.
I would like to be able to run either 37×13.50×18 tire and wheel combo or 37×12.50×18 combo without a bunch of my tire sticking way outside of my fender but like I said I don’t mind if it sticks out a little. Basically just wondering your opinion on what my best bet would be to clear these tires and wheels.
Also one last question sorry, this will all bolt right up to my truck right? Like I said 2014 ram 2500 diesel, it’s the big horn model with rear coil springs
Hey Tyler, thanks for your interest in Zone Offroad. You had a lot of questions in there and I’ll try to answer them all. I’ll also say our sales team is available to assist you over the phone at (888) 998-9663 and you can stop by your local Zone Offroad dealer with questions too, http://zoneoffroad.com/find-dealer.
Coil springs – you are correct that the 4.5″ kits are set up with front full length progressive rate coils along with a 2.5″ rear coil spacer where the 6.5″ kit uses front and rear full length progressive rate coil springs. The progressive rate coils mimic the factory front/rear coil spring design to offer a soft ride on road with the benefits of increased spring rate when towing, hauling, and cycling the suspension offroad. The factory suspension uses progressive rate coils as well, ride quality is similar with either kit, we only offer replacement rear coils for the taller lift heights.
Wheel/tires – Our recommended wheel/tire specs are just that, recommendations based on what we’ve tested and confirmed compatible. Other sizes can be used, but may require additional modification/ fender trimming. In your case I can’t say as to whether a 17″ would be able to fit or not, I would assume it would as I don’t know of an OE big brake for the RAM that requires 18″+ wheels. Our tire tire size recommendation is listed based on 17s, but comparably specs 18-20-22-24″ wheels can be installed for similar clearance.
Backspacing – Our backspacing measurements are on the moderate side and while they will stick out more than the factory wheels, the measurement is set up to position the wheel/tire combo for maximum clearance to the suspension and fender when driving/turning. 37s are a tight fit on 4.5″ of lift, even with following our wheel/tire recommendations. While the fit nicely for around town driving, you may find they still some minor rubbing at times when the truck is flexed out with the tires turned (offroad) that would require some additional trimming to maximize the wheelwell clearance for larger tires. The 6.5″ lift is the safer bet for tire clearance, especially if you are planning to run a wider 37×13.50 tire.
Installation – this is a 100% bolt on kit, no welding required. Step-by-step instructions are available at
4.5″ radius arm kit: http://4x4media.info/instructions/zon/D55.pdf
6.5″ radius arm kit: http://4x4media.info/instructions/zon/D58.pdf
For available kit info head to http://zoneoffroad.com/display?ma=16&yr=2014&mo=192&ca=78
2015 ram 1500 4×4 crew cab with 5.7l. With your zone 6 inch with 5 inch rear coil spring will a 37/13.5r22 on a 22×9.5 wheel with 5.72 in back spacing and 12 mm offset? Will I need spacers and how far will I sticknout past the fender? Thanks!
Hey Brian, we haven’t tested that particular wheel/tire combo on the RAM 1500 with our 6″/5″ lift kit to give a definitive answer. That said our recommendations for that kit are for 20×9/22×9 wheels with 5″ backspacing when using 37×13.50 tires and even then some trimming may be necessary to clear in all driving situations (on and off-road). The 5.72″ backspacing will cause them the tires to be very tight to the suspension/steering and potentially rub if your tire has an aggressive sidewall, there is a chance you won’t have any issues though. In speaking with our tech support team they mentioned if using a wheel with larger than 5″ backspacing to limit tire size to a a 35×12.50 or 37×12.50 to help with potential clearance issues. We don’t take measurement of how far the tire/wheel sticks out past the fenders, best place to check out photos and judge for yourself is our customer gallery at http://zoneoffroad.com/bad-to-the-bone
Hi I have a 2006 2500hd 4×4. I currently have 16×10 wheels with 4.5 backspacing -27 offset. With 305/70 tires. Can I still use the rims? I’m not worried about trimming the body.
Hi Rion,
How much lift do you have on your HD?
Typically we’re recommend our 3″ lift system for that tire wheel combo, but even then that wheel spec is outside of what we officially spec. Trimming on the front bumper and/or lower valance is very common on these trucks and if equipped with fender flares or mud flaps those can effect tire clearance as well.
Hey guys! I just finished installing the C4 lift on my truck. It looks awesome! I have three concerns. I have a 2006 GMC 2500 lbz duramax. I have Moto Metal MO975 wheels. 17×9 wheel with 18mm offset and 5.71 backspacing, I’m running 315/70/17 currently. First concern, how much knuckle clearance is needed between the knuckle and tire. Second concern is will a 35×12.50×17 work? Right now I seem to have 2-4 mm of knuckle clearance. Its not rubbing anywhere so I didn’t know if this was ok. Third concern is my driveshaft. This is a short bed crew cab single piece driveshaft and the yoke is sticking out 2in out from where it was in the back of the transfer case. Any ideas why and if that’s ok? Looks like I only have 2 in of yoke left inside the transfer case.
Thanks
Nick
Hey Nick, to answer your questions:
1) if you check our website or instruction sheet we list our recommended wheel specs as 17×9 wheels (5-5.5” BS) for sufficient clearance, while you have a small amount of clearance with your current setup its ideal to have more in the event of any tire deflection to keep them from rubbing. A small 1/4” wheel spacer would do the trick to bring them back within our recommended wheel specs for 17” wheels.
2) 315/70r17 and 35×12.50×17 are typically considered the same size tire, exact dimensions will vary slightly from tire to tire, we spec the 4.5” kits to fit 35×12.50 tires so the fact the tires aren’t rubbing is consistent with our recommendations.
3) On your rear driveshaft, the why you asked about is because it has a lift on the truck now and that is perfectly normal. The driveshaft has a splined input into the back of the transfer case so it can move in and out as the suspension moves up and down. When you install a lift basic geometry says the distance is longer so the driveshaft length need will be longer. Our kits are designed to retain the factory driveshafts and you still have sufficient of spline engagement on the shaft. If you are concerned with it your two options are to lengthen your rear driveshaft (through your local driveline shop or swap to a longer aftermarket unit for more strength.
I have 2007 Chevy 6″ lift and currently have 18×9 wheels with 305/70r18 tires.i have never had any problems with rubbing or suspension clearance but the tires stick out about 2 inches out of the wheel well. What wheel can I put on to bring the tires in more but keep the same height?
Hi Bobby, are you asking about a Chevy 1500 or a 2500/3500 model truck? The chassis/suspension are different, we offer a 6.5″ lift for the 1500 models and a 6″ lift for the 2500 models. In either case we list recommended tire wheel specs on our website, for more on the topic you can contact our customer service/tech support team at (888) 998-9663
hello gents,
Got a 2017 f150 FX 4 with tires 35 x 12.50, rims 17×9 , looking for a 6 inch suspensiosn lift, ur lfit says fitment 18inchs minimum, alot of people are saying that one inch wont do anything and others saying that one inch will completely screw up your build, maybe adding some Wheel spacers that i have that are 2 inch would help for when iji buy the 6 inch lift?
Open for suggestions .
Hey Matt, the reason we spec for 18″ or larger diameter wheels is due to clearance issues between the suspension/steering and the smaller diameter wheels. Our kit includes new steering knuckles that are taller and use a repositioned steering arm mount to allow the OE steering rack and linkage to be retained and function properly. Due to the new steering arm mounting location 17″ or smaller wheels (stock or aftermarket) cannot be reinstalled with our kit.
I will be installing a zone 6.5 lift on my 2016 Silverado 1500. I want to put wheels that are 22×9 with +24 offset and with 5.94 backspacing attached to a 35×12.50R22 tire. Will this work or will i have fitment issues. Thanks.
Hi Jonah, I responded to your duplicate questions on our social media pages, but to reiterate:
Our 4.5″/6.5″ kits are designed to allow fitment of the stock 20-22″ wheels (which have a similar width/backspacing spec to the wheels you’re planning on using). The clearance between tire sidewall and steering knuckle will be tight when installing 35×12.50 tires on factory spec’d wheels and depending on the aggressiveness of the sidewall you may consider a small (1/4″) wheel spacer to bring them out within our recommended 5.5-5.75″ backspacing measurement. Other than that it will be a nice combo on there. If you have other questions feel free to ask or reach out to our sales/tech support team at (888) 998-9663
Hi I should be receiving my 6″ lift for my 2004 chevy 2500hd 4×4 tommrow, plan on having it installed this weekend. My question is after I have the loft installed will my stock 16″ rims and 265 tires StI’ll fit until I can purchase aftermarket rims and tires? Thanks
Hi Bob,
our #C4 6″ lift kits for the ’01-10 HD allow the fitment of 16″ wheels with 4.5″ backspacing to allow for sufficient tire/wheel clearance for to with the suspension and steering. If installing them with factory 16×8 wheels (w/ 5.6″ backspacing) you’ll likely run into some clearance issues that may require a a set of wheel spacers be installed.
Hey I have a 14 Silverado 1500 I want to run 33×12.5 on a 20×10 Rim with -12 offset what size lift is need to clear?
Hi Bryan, ultimately a 10″ wide wheel is outside of our official recommended specs so I can’t guarantee fitment without some amount of trimming. Due to the squared off shape of the wheelwell our 4.5″ IFS system would be ideal to fit them (although some trimming may be needed to clear for offroad use). If you didn’t want to trim the 6.5″ kit would be needed. http://zoneoffroad.com/zone-offroad-products-4.5in-suspension-lift-kit-chevy-gmc-pickup/c27/c28
I’m looking to put 20×10 with -25 offset on my 2016 F150 4×4 how much lift would I need to clear 31, or 33’s with no rubbing or trimming
Hey Bryce, ultimately a 10? wide wheel is outside of our official recommended specs so I can’t guarantee fitment without some amount of trimming. The truck should come with about a 31-32″ tire stock so if running you’ll likely be able to fit a 31-33″ tire on a 10″ wide wheel with our 2″ leveling kit. http://zoneoffroad.com/zone-offroad-products-2in-leveling-kit-ford-f150/f1203
I am looking at 5.5 lift on my 2017 colorado z71 2 wd. Looking to run 285/65/18 on 18×9 wheel with 5.71 backspacing. Wondering if I’m going to have any rubbing
Hi Kevin, officially we haven’t tested/approved our 5.5″ lift kits for the 2WD Colorado models, only 4WD at this point. That said there are a number of similarities between those models and ride height so 5.5″ of lift will allow clearance for 285/5r18 tires on a 18×9 wheel. You may run into clearance issues in the front steering that would require a set of small wheel spacers to bring them out to our recommended 4.5″ backspacing. For more on the topic contact our sales/tech support team at (888) 998-9663
Hey on a 2018 Silverado 1500 would a 4.5″ lift work with my stock tires? they are 265 65r18.
Hey Justin, unfortunately the stock 17-18″ wheels can’t be reinstalled with our 4.5-6.5″ lifts unless you add wheel spacers to bring them out to our recommended 5″ backspacing measurement to clear the steering. For more on this topic check out the “important notes” tab on the product page at http://zoneoffroad.com/zone-offroad-products-4.5in-suspension-lift-kit-chevy-gmc-pickup/c27/c28 and if you have any other questions our sales/tech support team is available at (888) 998-9663 or by email at [email protected]
Ive got a ’13 ram 1500 express that has 20×9 kmc’s with a +15 offset and BSing of 5.59. If i understand it right that is too much backspace for a 4 inch lift to fit a 35×12.5 tire correct? Would that be an issue with rubbing the fender that could be fixed with a new bumper? Or with it hitting the steering/suspension components?
Hi Jack. Our wheel tire recommendation for 4″ lift kit is to fit 35×12.50 tires on 20×9 wheels with 4.5-5″ backspacing. While stock 20″ wheels (or similar to stock spec wheels) can be reinstalled with the lift, you are limited to a factory size (width) tire due to clearance issues with the steering components. One solution would be to use a small wheel spacer to bring your current wheels out within our recommended wheel spec range.
I have a 2006 tundra double cab with a 3 inch lift. I would like to run 295/70/17 on a set of either 17×8 with 4.5 back spacing or 17×9 with 4.75 backspace.
Would either option work?
Hi Dustin,
Being we don’t offer any kits for the ’00-06 Tundra I don’t have accurate wheel/tire recommendations to provide. The 295/70r17 (33.5 x 11.75″) may work, but is likely a bit on the large size for 3″ of lift and may require trimming, even with 8-9″ wide wheels (4.5-4.75″ backspacing). Sorry I can’t be more help here
02 Silverado 2500HD REG CAB. Want to do the zone adventure series kit with these wheels can you tell me if it will work? 20×8.5 with +12 offset. Basically new body style factory reman wheels with the largest tire I can fit. Thanks in advance .
Hi Zach,
Thanks for reaching out. While we haven’t tested that particular wheel to confirm max tire clearance, that 20×8.5 (+12mm/5.22″ BS) wheel can be used in combination with the 3″ Adventure Series Kit for your ’02 Chevy HD. My recommendation would be to use with a 285/55r20 or 305/55r20 tire. Other sizes may work, however trimming may be necessary to maximize clearance of the factory wheel wheel
I have a 2013 GMC 3500 with the zone 5″ lift. I am running 35×12.50×20 toyo mt right now with -25 offset. Tires do not rub and the torsion keys are nor cranked up at all. It is time for new tires and I was wondering if I could fit 37×13.50 toyo R/T. Thanks
Hey guys I have a 2015 Tacoma double cab long bed on the forums it’s hard to tell because some guys have aftermarket 17s that work with your kit despite the requirement for 18s. I am currently running bilstein 5100s at 2.5” with 17 x 9 -12 xd rockstar 2s (4.53 backspacing I believe). Will I have to upgrade to 18 still or run spacers to run my current wheels ? Any advice would be appreciated. Looking to get this going in the near future
Hey Johnny, officially we spec the kit to require 18″ (or larger) wheels for clearance reasons with steering components. That said some 17″ wheels don’t use as thick of construction and/or use a profile that clear, but not all do. For that reason we play it safe with our recommendation for 18″+. We haven’t tested that particular wheel to know about clearance so you’ll likely need to check clearance on the truck with the lift installed. For more on the topic you can contact our tech support team at (888) 998-9663
I just put on your 41/2 inch zone lift I want a flush stance I was looking at the 970 moto metal wheels with 33 inch toyo a/t what spacing on the wheel to have a flush stance with this lift or what wheel do You recommend to get a flush stance on my front and rear end? Please I need the help.
I have a 2017 Sierra 1500 with your 41/2 inch lift I am looking at the moto metal 970 wheels 20×9 with 33 toyo ats what spacing and offset can I do to get a flush stance I don’t want the wheels to be sticking out of my wheel wells more than an inch and a half and I want a flush look what wheel do u recommend to accomplish this want.
Hi Skylar, thanks for reaching out. On your question about wheel/tire recommendations, the larger the backspacing measurement the less they will stick out. Our 4.5″ kits allos 20×9 wheels with 5-5.75″ backspacing (aka 0mm to +19mm offset). They offer the Moto Metal 970 in a 20×9 with either 5″ or 5.71″ backspacing, I’d recommend the 5.71″ to keep them tucked under more which will also help to clearance to limit the potential to need to trim.
I am about to lift my Tacoma 2009 4×4 with a BDS 6″ lift. BDS states the recommended 35×12.5R18 with 4.5 max backspacing. Most of the Fuel Offroad rims I really like are 18×9 with 5 inches of backspace (+1mm offset). Can these still work if I choose 285/75R18 which is a bit more narrow than the usual 35×12.5?
Thanks for your help and any advice 🙂
Hi Larry, with both the BDS and Zone lift kits for the Tacoma, 4.5″ is the max wheel backspacing measurement that can be installed to prevent interference with the steering knuckle and tie rod ends. For more on the topic our tech support team is available to answer any questions on your specific application, (888) 998-9663
Hello,
I have a 2013 ford f150 crew cab 4×4 off road package. It has a 2″ leveling kit. I am wanting to put 20×10 -25 rims on it with 33×12.5×20 tires on it…..but I don’t want to trim. Is this possible? Does changing the offset one way or another, affect if trimming is needed or not (more -offset = more trimming??)? My goal is to have the biggest tires possible and a rim that has a deep lip on it, doesn’t necessarily have to stick out way way past fenders but a little bit. Please help….thanks
Jason
Hey Jason, the width and offset of the wheel used have a major effect on clearance, not so much when going straight down the road, but when turning. The farther they stick out the more range of motion front to back in the wheelwell you’ll have when turning and consequently more likelihood to have interference issues with the fenders/bumper. That wheel/tire combo is larger than we spec to be used on the 2″ leveling kit and would likely require trimming to clear in all driving situations (on-road and offroad).
Hello, i recently installed the zone 4.5 inch lift kit on my 2015 silverado 1500. I have a 20×10 rim with a -24 offset with 33×12.5 tires. I noticed the front wheels stick out of the fender farther than the rear. What size wheel spacer would you recommend for the rear to match the front?
Hey John, due to the design of the factory front suspension, the front front track width is increased when installing the lift to function properly. Our kit increases track width by 1-5/8″ per side. While is not necessary to run spacers in the rear, if you choose to do so 1.5″ wheel spacers will even out the stance front to rear.
Hey guys, I have a 2010 Dodge Ram 1500.I’m looking to get a 4 inch lift, but want to keep my stock rims that are 20×9 with a BS of 5.75”. I was wondering if I could put on 275/65/20 Nitto terra Grappler G2’s on.
Thanks
Hi Brent, with both of our 4″ lift kits (4″ IFS system and 4″ combo lift kit) we recommend 4.5-5″ backspacing to allow optimal tire clearance to the suspension components as well as the fenders. Stock 20×9 (5.75″ BS) wheels can be reinstalled with the lift, but we don’t recommend anything wider than a stock tire. The 275/65r20 measures out to about a 34×11″ tire which might clear, but may require wheel spacers being this is not a lift-wheel-tire combo that we have tested. For more info on our available lift kit options head to http://zoneoffroad.com/display?ma=16&yr=2010&mo=166&ca=78
2016 Chevrolet Colorado with 2.75″ Combo kit max tire size 285/70/17 with stock wheels stock backspacing. I was wondering if there will be any rubbing issues with this set up
Hi Joseph, that wheel/tire combo is the largest we recommend on the Colorado with the 2.75″ combo kit. With using that size tire we recommend installing our optional weld-on steering stops to eliminate and possible clearance issues at full turn. This which will effect turning radius slightly (outlined in step #59 of the instructions at http://4x4media.info/instructions/zon/C1257.pdf).
Hello, I have a 2018 chevy 1500 and will be ordering your 6.5″ lift. I want to run a 295/60r20 with a fuel 20×10 wheel with 5″ bs and -12 offset. Will those wheels work with the lift or will I have to stick with a 20×9
I have your 4.5 in lift on my 2015 Silverado 1500. I want to install 35×12.50 tires on stock 20 in rims. Will there be any rubbing, or cutting needed?
Hey James, ultimately there are a few factors with the answer. Our 4.5″ IFS system allows for up to 35×12.50 tires to be installed on 20×9 wheels with 5.75″ BS, but ultimately it will depend on:
1) the actual size of the tire (not all 35×12.50 tires measure out to the same or have the same sidewall shape)
2) how the truck will be used (a truck used on-road only will be less likely to need trimming than a truck used offroad)
3) if any other mods are done to the truck (i.e. bumper, fender flares, mud flaps, etc that may effect clearance)
While we can’t guarantee it will clear without trimming, you will be able to make it work, its just a matter of how much trimming will be necessary.
Hello, I have the 4.5 in lift installed on my 2015 Silverado 1500. Will there be any cutting necessary if I install 35×12.50 tires on 20 in factory rims? Or any rubbing?
Hey I have a 2013 ram 1500 sport with a 2.5” leveling kit, just wondering if 33×12.5x20s on 20×10 -18 rims would cause any rubbing
Hi Issaac,
ultimately that wheel/tire spec is outside of what we spec for the RAM 1500 so I can’t guarantee they’ll clear in all driving situations (on/off-road use). Ideal backspacing on the RAMs is 5″, those 20×10 (-18mm offset) wheels measure out to 4.75″ backspacing so they’re close, but may still require some minor trimming to the inner fenders to eliminate potential rubbing.
Hey I have a 2009 gmc sierra z71 4×4 I’m planning to get a 6.5 inch lift kit with 22×9 oe performance rims would I be able to put 35×12.50 on? If so how much trimming would I have to do
Hey Kyle,
Our official recommendation is for 35×12.50 tires on 20×9/22×9 wheels (w/ 5.75″ backspacing). The GM performance 22×9 wheels should have a 5.94″ backspacing, while you will be able to install those wheels with stock tires, your 35×12.50s may havea slight interference issue with the steering (dependent on how aggressive the tire sidewall lugs are). A 1/4″ wheel spacer may be necessary to allow sufficient clearance. As far as fender/bumper clearance you shouldn’t have any issues clearing that setup.
I have a question my 2012 ram 1500 has bilstein adjustable shocks on front and rear maxed at 2.8 inches. Right now I’m running 285/65r20s on stock wheels (+19mm offset) 20×9. Can I put a 17×9 wheel on my truck with a -12mm offset and put on 35×12.50r17?
Hi Shawn,
I’ll start out by saying check your upper ball joint angle. we don’t recommend that tall of a body lift as it causes some extreme ball joint and CV axle angles. If you’re still running the stock UCAs they are likely at an extreme angle currently. We recommend aftermarket UCAs for any leveling kits above 1.5″ and include them in with our leveling kits. For more info on them see http://zoneoffroad.com/zone-offroad-products-control-arms-ram/d2301
As for tire clearance, that particular wheel/tire/lift combo is outside of what we offer so it’s difficult to give a definitive answer on clearance, however you’ll likely need to do some trimming, go with a small tire, or swap to a taller lift. 9″ wide with -12mm offset is equal to 4.53″ backspacing which is in line with our recommendation for a 4″ IFS System.
I am putting a 6″ sup. lift on my 2011 Dodge Ram 2500 and I was told I can run 35″ or 37″ 12.50 on the truck i was worried that the 37″ tries may rub
does anyone have any ideas if the 37″ might rub.
Rim size is 17″ x 9″.
Hi Jeff,
We list recommended wheel/tire specs on our website with each product page. Based on our 6″ lift kit you will be able to install 37×12.50 tires on 17×9 wheels with 4.5-5″ backspacing and they’ll fill out the wheelwell nicely. That said there is the potential some minor trimming may be needed to clear in all driving situations (on and offroad use)
Hey guys, I’m running your 5″ lift on my ’11 Tundra DC. I’m currently running 37×13.50R18’s. I would like to switch to BFG AT2’s in 37 however they only come in 17″s. What offset if any will fit this kit in a 17″ wheel?
Hey Jason, a few disclaimers to put out there.
1) 37″ tires are outside our recommended spec with the 5″ Tundra lift kit. As you likely found out already they required some additional fender/bumper trimming for on/off road use)
2) Due to steering mount positioning on the steering knuckles in our 5″ kit to maintain steering angles, our kit requires 18″+ wheels be used. 17s won’t clear the steering.
Hello. I have a question about C31N for an 2005 Silverado 2500HD. I am currently running 285/75r16 on stock alloy wheels, will this combination work with the 3 inch adventure series?
Hey Chris,
Ultimately factory 16-17″ wheels cannot be reinstalled with this kit due to clearance issues. You would need to either (A) add wheel spacers to achieve 4.5″ backspacing for clearance with factory 16″ wheels or (B) go with an aftermarket wheel to achieve a similar backspacing.
I have a 2004 Jeep Wrangler x with a 4 inch zone suspension lift. I am currently riding on 35×12.5/r18
With rims off of a 2015 Jeep Sahara altitude edition .This setup rubs on my control arm and the top bolt that connects to my sway bar . What is the best or easiest way to prevent this rubbing by still running 35×12.5 tires.
Ultimately what it comes down to is the factory wheels have too large of a backspacing measurement being they are designed for factory size tires. You have two options, add wheel spacers or swap to aftermarket wheels.
Wheel spacers will allow you to use your current wheels. You’ll need to take a measurement of your current backspacing and go with the size wheel spacers needed (likely 1-1.5″). The other (more preferred method) is swapping to an aftermarket wheel that has the correct 4.5″ backspacing to begin with
I have a 2018 RAM 1500 Sport Night edition. I installed the Zone 4″ lift Kit. I have two questions regarding the tire and wheel setup I could run. How far does the new steering knuckle push out the stock rim compared to the OEM knuckle? Also I wanted to use the existing wheels with new tires. The stock black sport rims are 20X8. I want to run 295X65XR20 BFGoodrich K02’s. currently It looks like that tire would fit although the only concern I have is, there is only about 0.5″ of space between the stock tire sidewall and the new steering knuckle. Since the K02 tire is about 1″ wider (0.5″ on both sides) what is the minimum thickness of spacer I would need to fit the new tire or what is the minimum acceptable space between the sidewall of a tire and the steering knuckle?
Hey Erik, great questions. First things first, track width change. All of our kits for the 2012-2018 RAM 1500 (including the 4″ and 6″ IFS kits) cause zero track width change from the factory design. The factory 20″ wheels can be reinstalled, however as you’re seeing clearances are tight which is why we recommend factory tire size only. Wheel spacers would allow for clearance to the steering for use with oversized tires. My initial recommendation would be to measure the backspacing of that particular wheel (measurement from the wheel mounting surface to the backside edge of the wheel, it’s likely 5.25-5.75″). From there you can get figure out the wheel spacer needed to achieve the recommended backspacing, which is 5″ on the RAMs.
Hi. I have a 2017 Chevy Silverado 1500 LT. I was looking at possibly purchasing the Zone 6.5″ spacer lift kit, but am wanting to run Nitto Ridge Grapplers (35×11.5 18) on Ballistic Scythe 953 18×9 -12mm wheels. The ONLY thing I am worried about is having to end up trimming the wheel well closest to the cab only beacause I’m not very handy when it comes to stuff like that. I’ve also been in touch with a couple of auto body shops and told them about my predicament, and the answers I got from them is ‘We don’t do that kind of stuff here’. I’ve YouTube’d a bunch of videos on how to do a Norcal, and seems pretty easy, but that would def be a last resort. Thanks for your time.
Hey Shannon, tire clearance is a common question we get asked and ultimately those tire/wheel specs are within our recommendations for the 6.5″ lift kit. The 18×9 wheel with -12mm offset is similar to a 4.5″ backspacing which can be used and will stick out a bit more than the 5-5.25″ listed on our site for optimal clearance. A few factors at play here, (A) how the vehicle will be used? – if primarily on road the suspension will be cycled less than if used offroad which may require a bit more trimming. (B) are fender flares, mud flaps, or wheel-to-wheel steps installed that may impede tire clearance. For the backside of the fender we offer a fairly easy option that will achieve the “norcal” trim on the GM trucks with our C5652 fender trim plates. Check them out
Hi, I’m looking to install your 4.5” suspension lift on my 2015 Silverado. I’ll be installing the lift before I get aftermarket wheels and tires. My stock wheels at the 22” factory chevy wheels. Will the clear the knuckle and tie rod? I’ve read that they will and I’ve had a shop tell me they won’t. I’d just like an answer from you guys before I go and order it.
Hey Nickolas, the factory 20-22″ wheels CAN be reinstalled with the lift installed and will clear the steering. Its the factory 17-18″ wheels that CANNOT be reinstalled. While you are good to go reinstall your factory 22″ wheels, we don’t recommend going much larger (wider) on the tire size due to potential knuckle/UCA interference. Wheel spacers or the aftermarket wheel with the correct backspacing will allow clearance for the 33-35″ tires spec’d on our website.
Hi, I’m planning on getting the zone 6.5 inch suspension lift on my 2008 GMC Sierra 1500 4×4. I want to use my moto metal MO970 17×9 -12 offset on 33×11.5 wheels. Will this work or will I need to get new rims? Thank you very much.
Hey Johnathan, thanks for reaching out. That setup will work just fine for you. 17×9 (-12mm offset) measures out to 4.5″ backspacing (BS). Our 6.5″ lift kit allows just that 17×9 (4.5″ BS) to comfortably fit a 33×12.50 tire with little to no trimming necessary. For more on the kit head to zoneoffroad.com
I just purchased your 5” lift for my 2016 Silverado 2500hd. I was wondering if a 20×9 wheel with 20 offset and 5.75 in back spacing running 35×12.5 tires would clear everything involved
Hey Chance,
That wheel/tire combo is within our recommended specs to use with our 4.5″ high clearance system for the 11-19 HDs. While it shouldn’t require trimming, it is possible you’ll need to make some minor modifications to the lower corners of the front wheelwell plastic to clear the tires in all driving situations (on and offroad use). Ultimately this is common on all GMs due to the square wheelwells.
I have a 2011 GMC Sierra 1500 SL. I installed a Zone levelling kit running 285/75R17 on stock rims (5.5″ backspacing?? – I think). I just upgraded to a Zone 4.5″ ZONE8N lift. Can I run the stock rims with 285/75R17 without wheel spacers. If I do need wheel spacers what would I need front and rear to have the same width after the kit is installed.
Hey Rich,
Congrats on the new kit, you’re going to love it! On the question about wheels the stock 17-18s cannot be reinstalled once you go to a full lift kit due to the steering mount on the new knuckles. You could add wheel spacers to achieve our recommended backspacing measurement for 17″ wheels with that kit is 4.5″ BS. Depending on your particular wheel the measurement may vary, check out this video on how to measure your backspacing. One thing to note is due to the factory suspension design installing the lift kit will increase the front track width by about 1-5/8″ so that will need to be factored into the wheel spacers you order for front vs rear if your end goal is to even out the track width front/rear
Looking to lift my truck, just ordered 20×9 +01 fuel assault wheels and I’m putting them on my 275/60/r20s. Would the 4 inch zone lift be better or should I go with a 6 inch lift that I really want? I don’t want the tires to look to small, I don’t want to have to buy new tires right now. Will I come into any trouble with backspacing on either lift as well?
Hey Nick, you mind elaborating on the year/make/model of your truck? Difficult to give feedback without vehicle context
I have a 2020 Ram 1500 Rebel and I want to install the 6 inch suspension lift you offer. I am ordering 35 x 12.5 x18 tires to go with it but I really want to use my stock rims that came with the truck is that possible with this combination?
Hi David, when installing the lift kit the steering knuckles use a repositioned steering tie rod mount to maintain handling, but will limit wheel clearance, especially for smaller diameter wheel options. Officially we say the factory 17-18″ wheels cannot be reinstalled, however if installing them in combination with wheel spacers to achieve our recommended backspacing they can be used. You’ll want to get a measurement on your particular wheel, but we recommend 4.5-5″ backspacing (likely about a .5″ wheel spacer will be needed)
I have a 1998 GMC k-1500 4wd with a 3 inch body lift only I found I set of wheels that are 18mm offset with 5.71 back spacing will those fit with 35 12.50 r17
Hi Roger, 35″ tires are likely too large to fit on just a 3″ body lift without some body/bumper trimming.
I have a 6″ zone lift on my 2021 GMC Sierra 1500 SLT 4×4. I have 22×9 wheels with 24mm off set and 295-45-22 tires. Curremtly i have 1/4 spacers with no rub but i want more poke…what do you recommend for wheels spacers? 1″, 1.5″ or 2″?
Hi Charles, in general we do not recommend wheel spacers, but rather choosing a wheel with the correct backspacing. That 20×9 wheel with +24mm offset measures out to 5.94″ backspacing which is within our recommended spec of 5.5-6.25″ backspacing when fitting a 35×12.50 tire. While you are welcome to run any size wheel spacer to achieve the stance you are after it will do 2 thing, (1) add additional strain on wheel bearings and (2) increasing the range of motion the the tire/wheel moves in the wheel well when turning from lock to lock. Some trimming may be needed.
I’m looking to grab a new set of wheels and tires I have a 6.5” suspension lift sill 17×9 still fit?
Hey Nick,
what YMM truck are we talking about and what’s the backspacing on those 17×9 wheels?
I have a 2015 Ram 2500 and have purchased the Zone 6.5” suspension lift. I need help figuring out what the specs would need to be to run a 37” tire on a 20” rim with very little to no trimming. Also, would I be able to have a wider, more aggressive stance if I went with 35” tires instead and if so what would be the specs on that? Thanks!
Hey Hayden, We list the recommended wheel/tire specs for that kit on our website here. You’ll want to stick with a more modest wheel width/backspacing for the 37s where is going down to a 35″ tire you have more flexibility on the wheel specs to keep them from trimming.
I have a 2021 Chevrolet 2500HD with the 5” lift to install. I want to run a 35×11.50r20 or 22. Possibly a 12.50 but I don’t want my tire sticking 3-4” outside the wheel well but maybe 1”-2”. What would be my recommended offset/backspace to accomplish this with no to minimal valance trimming?
Hey Jarrod,
Realistically you can fit a 37×12.50 tire with our 5″ lift kit assuming to stick with a modest wheel spec which it sounds like is your goal anyway. The 20+ models have a larger wheel opening that accommodates larger tires than the 11-19 HD trucks. You are welcome to run a 35×11.50 or 35×12.50, it just may not fill out the wheelwell proportionally on the truck. Our recommendation with the 5″ lift kit is to run a 37×12.50 tire on a 20×9 (or 22×9) wheel with 5-5.5″ backspacing which will keep the tire in that 1-2″ range outside of the fender
I know this forum is for off road applications, but I’m hoping that you could help me. I have a 2010 GMC Terrain and I was just given a used set of Tesla 22 inch Model X Turbine wheels (10 inches wide, not staggered), which has the same bolt pattern of 5×120. Would I need spacers and if so, how wide should the spacers be?
ultimately that would depend on the backspacing of the Tesla wheels, the tire size and your comfort level trimming if necessary.
I have a 2018 Silverado. I’m looking at the 4.5 vs 6.5 lift kits. I don’t want strut spacers tho so the 4.5 is looking like a loser for me. Do you have a strut replacement or recommendation? I will be replacing the upper control arms either way unless you recommend against it on the 4.5.
Also, I currently have 20×9 -18 offset wheels with 33 inch tires on. 2 inch lift level rough country spacers. I have trimmed and hammered to eliminate the rubbing. I’d like to go at least 35 inch with a little more width. Trimming, hammering, etc is ok and I have an off-road bumper so bumper clearance is a non issue. What would you do?
I have a 2″ level on my 2016 f150 4×4 with zone adventure series UCA’s, how wide of a ~33″ tire can I fit on stock rims (17×7.5 o+44) before rubbing on uca’s without spacers
-thanks
